In my previous posts I did some writngs on UTPLSQL and ruby-plsql. For long time, while developing Oracle code I was using ruby-plsql to do test driven development for SQL and PL/SQL. I used to frequently forget how to use some of the functionalities of ruby-plsql, specially after having a longer break and so each time I was referring the Unit Tests supplied for the ruby-plsql library as a reference. They are really nicely documenting how things work and how can they be used. It usually took me few minutes to find the thing I needed.

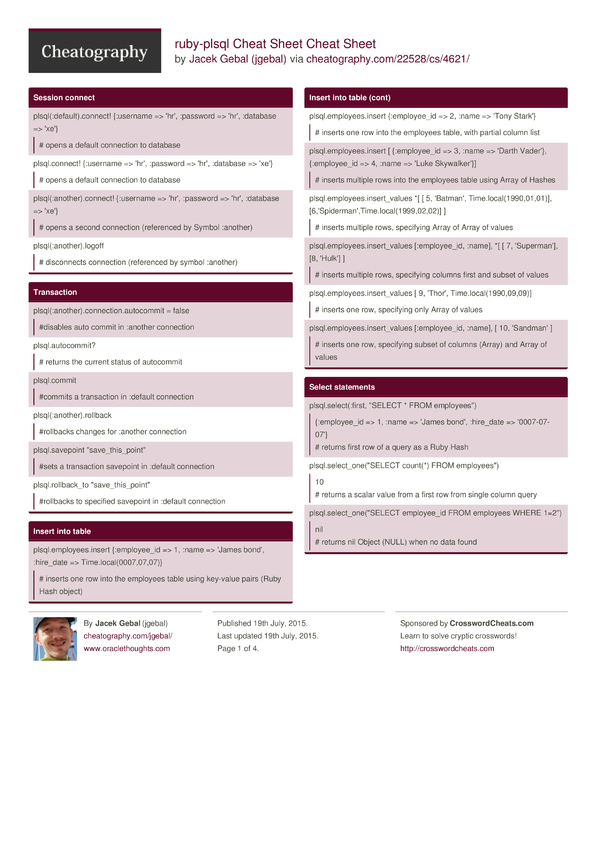

While I was actively using ruby-plsql for testing Oracle SQL and PLSQL code, it never occurred to me, that it would be nice to have some kind of cheat sheet, and so I wasted the valuable seconds and minutes to figure out how to do things I needed to do. This week however, Turntablez posted a suggestion on ruby-plsql-spec github project page that a cheat sheet would be something of a use. It was a really great idea, saves precious minutes when you need to use something you're not used to or just don't do every day. So here it is, fully downloadable, editable and hopefully usable Cheat Sheet for ruby-plsql. It's not a reference, it's not complete (or official), but hopefully it's a good overview and a fast help if you need to see how things work. Update If you prefer a more visual/printable form, you might want to check out the same Cheat Sheet on http://www.cheatography.com/jgebal/cheat-sheets/ruby-plsql-cheat-sheet/ Or just download the PDF version. [ruby gutter="0" highlight="1,32,54,69,93,112,150"]

Session / connection settings

plsql(:default).connect! {:username => 'hr', :password => 'hr', :database => 'xe'} plsql.connect! {:username => 'hr', :password => 'hr', :database => 'xe'}

opens a connection to database (referenced by Symbol :default, or no symbol at all)

plsql(:another).connect! {:username => 'hr', :password => 'hr', :database => 'xe'}

opens a second connection (referenced by Symbol :another)

plsql.connection.prefetch_rows = 100

sets number of rows to be fetched at once from the database for default connection

plsql.connection.database_version

[11, 2, 0, 2]

returns version of database as an array of elements: major, minor, update, patch

plsql.dbms_output_stream = STDOUT

sets redirects dbms_output to standard output (console)

works even if exception on code occurs

plsql.dbms_output_buffer_size = 100_000

sets dbms_output buffer size to 100,000

plsql(:another).logoff

disconnects connection (referenced by symbol :another) from the database

plsql.hr.class

PLSQL::Schema

You can reference objects in other schemas using schema name

Transaction

plsql(:another).connection.autocommit = false

disables auto commit in :another connection

plsql.autocommit?

true

returns the current status of autocommit for connection

plsql.commit

commits a transaction in :default connection

plsql(:another).rollback

rollbacks all uncommited changes in the current transaction for :another connection

plsql.savepoint "save_this_point"

sets a transaction savepoint in :default connection

plsql.rollback_to "save_this_point"

performs a rollback of transaction to specified savepoint in :default connection

Execute SQL statement or PLSQL block

plsql.execute "CREATE SYNONYM employees_synonym FOR employees"

executes any given string as a SQL or PLSQL statement

plsql.execute <<-SQL CREATE TABLE test_employees ( employee_id NUMBER(15), name VARCHAR2(50), hire_date DATE ) SQL

executes multi-line string statements too

Insert into table

plsql.employees.insert {:employee_id => 1, :name => 'James bond', :hire_date => Time.local(0007,07,07)}

inserts one row into the employees table using key-value pairs (Ruby Hash object)

plsql.employees.insert {:employee_id => 2, :name => 'Tony Stark'}

inserts one row into the employees table, with partial column list

plsql.employees.insert [ {:employee_id => 3, :name => 'Darth Vader'}, {:employee_id => 4, :name => 'Luke Skywalker'}]

inserts multiple rows into the employees table using Array of Hashes

plsql.employees.insert_values *[ [ 5, 'Batman', Time.local(1990,01,01)], [6,'Spiderman',Time.local(1999,02,02)] ]

inserts multiple rows, specifying Array of Array of values

plsql.employees.insert_values [:employee_id, :name], *[ [ 7, 'Superman'], [8, 'Hulk'] ]

inserts multiple rows, specifying columns first and subset of values

plsql.employees.insert_values [ 9, 'Thor', Time.local(1990,09,09)]

inserts one row, specifying only Array of values

plsql.employees.insert_values [:employee_id, :name], [ 10, 'Sandman' ]

inserts one row, specifying subset of columns (Array) and Array of values

Select statements

plsql.select(:first, "SELECT * FROM employees")

{:employee_id => 1, :name => 'James bond', :hire_date => '0007-07-07'}

returns first row of a query as a Ruby Hash

plsql.select_one("SELECT count(*) FROM employees")

10

returns a scalar value from a first row from single column query

plsql.select_one("SELECT employee_id FROM employees WHERE 1=2")

nil

returns nil Object (NULL) when no data found

plsql.select(:all, "SELECT * FROM employees ORDER BY employee_id")

[ {:employee_id => 1, :name => 'James bond', :hire_date => '0007-07-07'}, {...}, ... ]

returns all rows from a query as an Array of Hashes

Select from a table/view

plsql.employees.select(:first, "ORDER BY employee_id") plsql.employees.first("ORDER BY employee_id")

{:employee_id => 1, :name => 'James bond', :hire_date => '0007-07-07'}

returns first row from a table

plsql.employees.select(:first, "WHERE employee_id = :a", 2) plsql.employees.first("WHERE employee_id = :a", 2) plsql.employees.first(:employee_id => 2)

{:employee_id => 2, :name => 'Tony Stark', :hire_date => nil}

returns first row from a table with WHERE condition

plsql.employees.select(:all, "ORDER BY employee_id") plsql.employees.all("ORDER BY employee_id") plsql.employees.all(:order_by => :employee_id)

[ {:employee_id => 1, :name => 'James bond', :hire_date => '0007-07-07'}, {...}, ... ]

returns all rows from a table sorted using ORDER BY

plsql.employees.all(:employee_id => 2, :order_by => :employee_id)

[ {:employee_id => 2, :name => 'Tony Stark', :hire_date => nil} ]

returns all rows from a table with WHERE condition

plsql.employees.all "WHERE employee_id = 2 AND hire_date IS NULL" plsql.employees.all( {:employee_id => 2, :hire_date => nil} )

[ {:employee_id => 2, :name => 'Tony Stark', :hire_date => nil} ]

returns all rows from a table with WHERE condition on NULL value

plsql.employees.all(:hire_date => :is_not_null)

[ {:employee_id => 1, :name => 'James bond', :hire_date => '0007-07-07'}, {...}, ... ]

returns all rows from a table with WHERE condition on NOT NULL value

plsql.employees.select(:count) plsql.employees.count

10

returns count of rows in the table

Update table/view

plsql.employees.update :name => 'Test'

updates field name in all records

plsql.employees.update :name => 'Superman II', :where => {:employee_id => 7} plsql.employees.update :name => 'Superman II', :where => "employee_id = 7"

updates field in table with a where condition

plsql.employees.update :name => 'Superman II', :hire_date => Time.local(2000,01,01), :where => "employee_id = 7"

updates two fields in table with a where condition

[/ruby] [ruby gutter="0" highlight="1,8,39,53,67,94,107,119,131"]

Delete from table/view

plsql.employees.delete :employee_id => 10 plsql.employees.delete "employee_id = 10"

delete record in table with WHERE condition

Table/View meta-data

plsql.execute "CREATE OR REPLACE VIEW employees_v AS SELECT * FROM employees"

creates a VIEW

plsql.employees_v.class

PLSQL::View

The employees_v Object is of PLSQL::View class

plsql.employees.class

PLSQL::Table

The employees Object is of PLSQL::Table class

plsql.employees_synonym.class

PLSQL::Table

The emplyees_synonym Object is also of PLSQL::Table class

plsql.employees.column_names plsql.employees_v.column_names

[ employee_id, name, hire_date ]

returns all column names in table

plsql.employees.columns plsql.employees_v.columns

{ :employee_id => {

:position=>1, :data_type=>"NUMBER", :data_length=>22, :data_precision=>15, :data_scale=>0, :char_used=>nil, :type_owner=>nil, :type_name=>nil, :sql_type_name=>nil, :nullable => false, :data_default => nil} , ...}

returns column meta-data

Sequence

plsql.execute "CREATE SEQUENCE employees_seq"

executes a statement to create a sequence

plsql.employees_seq.nextval

1

returns NEXTVAL for sequence

plsql.employees_seq.currval

1

returns CURRVAL for sequence

Package

plsql.test_package.class

PLSQL::Package

A plsql package is Object of PLSQL::Package class

plsql.test_package.test_variable = 1

Assigns a value to package public variable

plsql.test_package.test_variable

1

Reads a value to package public variable

Procedure / Function

given a FUNCTION uppercase( p_string VARCHAR2 ) RETURN VARCHAR2

plsql.uppercase( 'xxx' ) plsql.uppercase( :p_string => 'xxx' )

'XXX'

executes the function binding parameters by position or name and returns scalar Object as a value

given a FUNCTION copy_function( p_from VARCHAR2, p_to OUT VARCHAR2, p_to_double OUT VARCHAR2 ) RETURN NUMBER

plsql.copy_function( 'abc', nil, nil) plsql.copy_function( :p_from => 'abc', :p_to => nil, :p_to_double => nil) plsql.copy_function( 'abc' )

[ 3, { :p_to => "abc", :p_to_double => "abcabc" } ]

executes the function and returns 2 element Array

with first element being function result and second element being a Hash of OUT parameters

Given a PROCEDURE copy_proc( p_from VARCHAR2, p_to OUT VARCHAR2, p_to_double OUT VARCHAR2 )

plsql.copy_proc( 'abc', nil, nil) plsql.copy_proc( :p_from => 'abc', :p_to => nil, :p_to_double => nil) plsql.copy_proc( 'abc' )

{ :p_to => 'abc', :p_to_double => 'abcabc' }

executes the procedure and returns a Hash of OUT parameters as a :name => 'value' pairs

Record types/Object Types

Given a FUNCTION get_full_name( p_employee employees%ROWTYPE ) RETURN VARCHAR2

plsql.get_full_name( {:p_employee => {:employee_id => 2, :first_name => 'Tony', :last_name => 'Stark', :hire_date => nil} } ) plsql.get_full_name( {:employee_id => 2, :first_name => 'Tony', :last_name => 'Stark', :hire_date => nil} ) plsql.get_full_name( {'EMPLOYEE_ID' => 2, 'first_name' => 'Tony', 'last_NaMe' => 'Stark', 'hire_date' => nil} )

'Tony Stark'

Accepts a record as a parameter (by name or by position) and executes the function returning String (VARCHAR2)

Record fields can be defined as a Symbol (:employee_id) or as a String ('employee_id')

Works the same way with package level record types and Oracle object types

Varrays and Nested Tables

Given a TYPE table_of_int IS TABLE OF INTEGER;

Given FUNCTION sum_items(p_items TABLE_OF_INT) RETURN INTEGER

plsql.sum_items( [1,2,3,4,5] ) plsql.sum_items( :p_items => [1,2,3,4,5] )

15

Nested tables are passed in and returned as Ruby Array Object type

Works the same way for VARRAYS

Associative arrays (aka plsql tables, index-by tables)

Given a package MY_PACKAGE

contains TYPE index_table_of_int IS TABLE OF INTEGER INDEX BY BINARY_INTEGER;

contains FUNCTION sum_items(p_items INDEX_TABLE_OF_INT) RETURN INTEGER;

plsql.my_package.sum_items( { -1 => 1, 5 => 2, 3 => 3, 4 => 4} )

10

Associative arrays are passed in and returned as a Ruby Hash containing list of key value pairs

Where key is the element position in Array and value is the value at the position

Cursors

Given a FUNCTION get_empolyees RETURN SYS_REFCURSOR

plsql.get_employees do |result| result.columns end

[ :employee_id, :name, :hire_date ]

returns the list of columns of a cursor as an Array

plsql.get_employees do |result| result.fetch_hash_all end plsql.get_employees{ |cursor| cursor.fetch_hash_all } plsql.get_employees{ |any_name| any_name.fetch_hash_all }

[ {:employee_id => 1, :name => 'James bond', :hire_date => '0007-07-07'}, {...}, ... ]

fetches all rows from a cursor and returns them as an Array of Hashes

cursor needs to be accessed inside a block ( do .. end / { .. } )

as cursors are automatically closed after the function call ends

plsql.get_employees{ |result| result.fetch_hash }

{:employee_id => 1, :name => 'James bond', :hire_date => '0007-07-07'}

fetches one row from a cursor and returns it as a Hash

plsql.get_employees{ |result| result.fetch }

[1, 'James bond', '0007-07-07']

fetches one row from a cursor and returns it as a Array of values

plsql.get_employees{ |result| result.fetch_all }

[[1, 'James bond', '0007-07-07'], [...], ... ]

fetches all rows from a cursor and returns them as an Array of Arrays of values

[/ruby] If you like it, share it, rate it, comment it.
